Twin Ceiling Mount 9000 – Ductless (H.E. 220V Condenser) Wine Cellar Cooling System

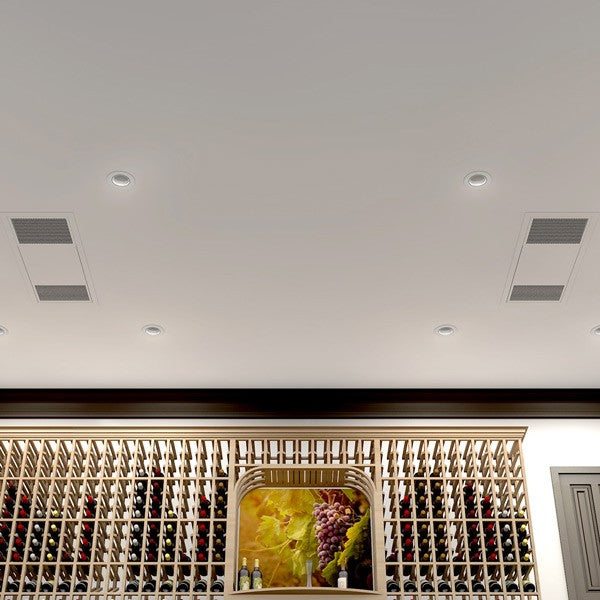

The WhisperKOOL Twin Ceiling Mount 9000 is a high-performance ceiling-mounted split system evaporator engineered to provide efficient, discreet climate control for large custom wine cellars. Designed in response to feedback from cellar contractors, this advanced cooling system installs flush in the ceiling, preserving valuable wall space and maximizing wine racking capacity.

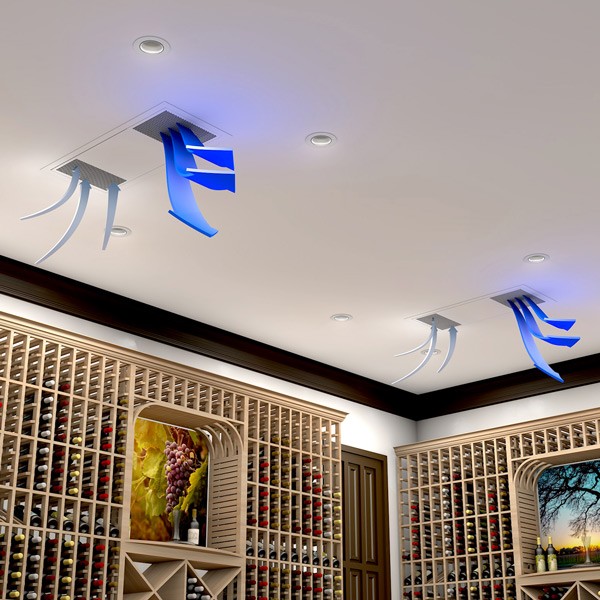

Built to deliver powerful airflow and precise temperature control, the Twin Ceiling Mount 9000 draws in the warm air that rises to the ceiling, cools it efficiently, and redistributes it evenly throughout the cellar. This smart airflow design supports consistent cooling performance across larger cellar spaces while remaining virtually invisible.

Crafted with professional-grade components for durability and long-term performance, this ceiling-mount wine cooling unit also offers easy installation and service access, making it a top choice for premium wine cellar builds where aesthetics and function are equally important.

If you're looking for a concealed wine cooling solution that delivers reliable, quiet operation without compromising on storage space, the WhisperKOOL Twin Ceiling Mount 9000 offers unmatched performance in a compact, out-of-sight design.

Designed & Assembled in California

Split Systems “split” the cooling system in two, with the evaporator inside the cellar and the condenser being placed nearby.  Placing the condenser in a remote location keeps the wine cellar quiet and vibration-free.

Dimensions:

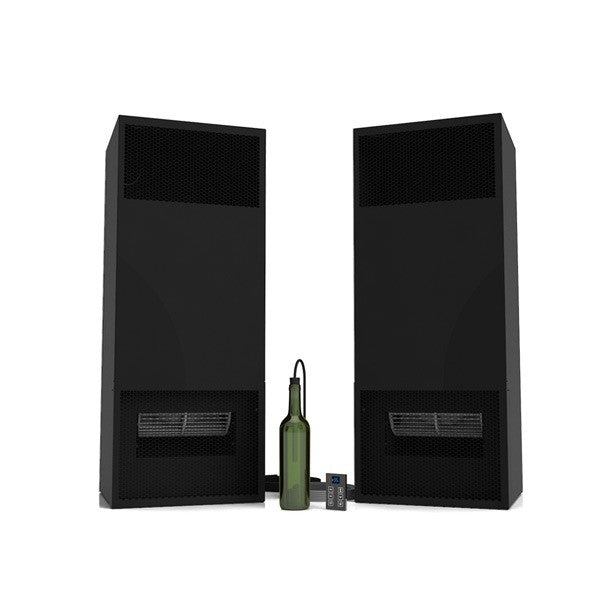

Dual Evaporators: 35.75"L x 14.5"W x 12.75"H
Condenser: 31.18"L x 10.75"W x 21.18" H

Insulated Line Set:

3/4”Suction (7/8" if greater than 50ft)

3/8”Liquid

Drainline: 1/2” ID clear plastic tubing

Cellar Size: Approx. 3000 Cu.Ft

The Split System does NOT come with its own line set.

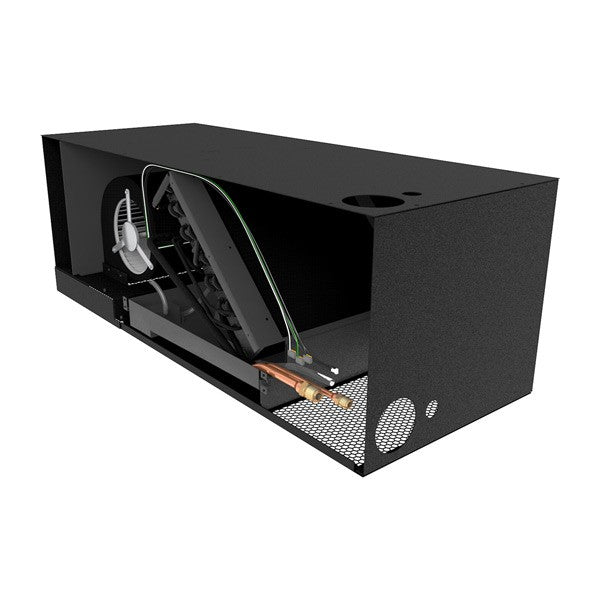

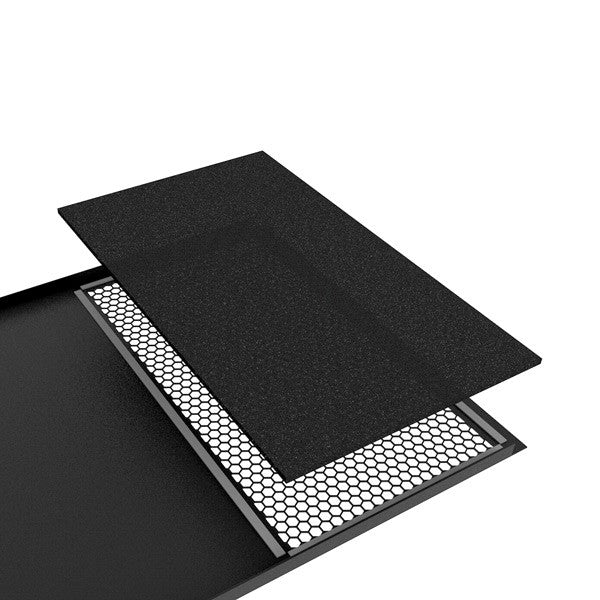

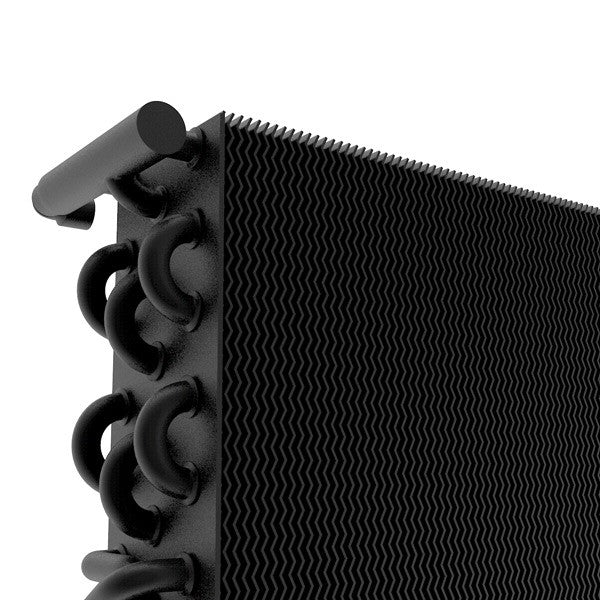

Technicians and installers will be happy to hear that the electrical wiring, bottle probe wiring, and the line set are all located at the bottom of the unit, rather than the top. Not only are the essential components relocated and easier to access, flare fittings will now be utilized so that there is no brazing needed in the field. The redesign includes e-coated duramax evaporator coils which will improve system performance, and a new looking hex mesh grille with an air filter to protect the unit from the intake of potentially harmful debris during the initial start-up.

24Volt

For the Split System series, a 24V option is also available which allows you to tie into your home electronic thermostat or home automation system, please inquire.

 Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.  Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

• Virtually silent operation
• Liquid bottle probe
• Humidity control
• Alarm options
• 55°F temperature delta

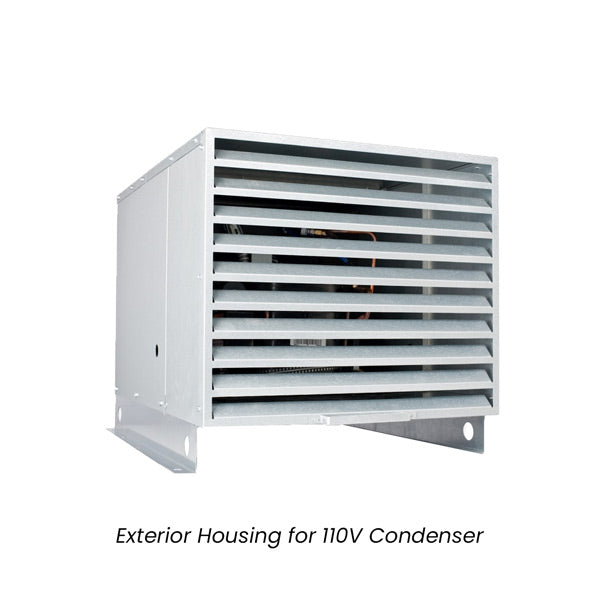

• 220V Condenser can be placed outdoors

Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website.  You will have an opportunity to not complete your order at that time.

For CAD customers - Shipping Charges for importation, brokerage, duties might be extra, however you will be contacted by a Rosehill Customer Service Representative to discuss it further. Local delivery included.

Warranty Check List – R134a Products
Warranty Check List – R404a Products

Warranty Check List
Warranty

Please make sure you complete the warranty check list to ensure your warranty is active.

A limited 2-year product/5-year compressor warranty is offered with all split system cooling units at the date of purchase.
