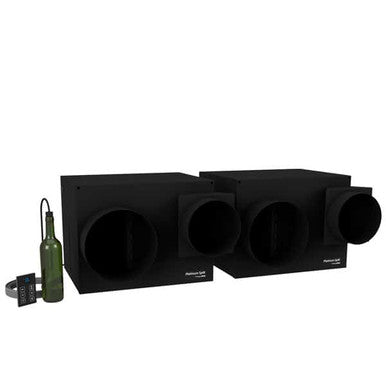

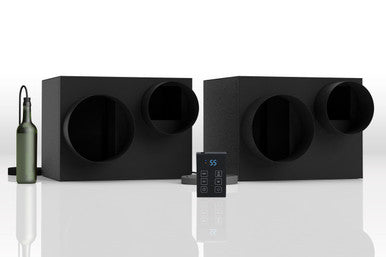

Twin Platinum Split (220V Condenser) Wine Cellar Cooling System

When silence and sophistication are paramount, the Ducted Twin Platinum Split stands apart. Engineered for unobtrusive performance, this advanced system positions both the evaporator and condenser entirely outside the wine cellar—delivering near-silent operation and preserving the beauty of your cellar’s interior. Designed for seamless integration, it ensures optimal cooling without compromising aesthetics. Built with premium-grade components for exceptional durability and efficiency, the Ducted Twin Platinum Split creates the ideal conditions to protect and preserve your finest wine collection.

Designed & Assembled in California

Note: A qualified HVAC-R technician is required for the installation of your Ducted Twin Platinum Split. Failure to have the system installed by a qualified technician will void the warranty.

Ducted Split Systems split the cooling system in two, where the condenser can be placed in a space better suited for heat and noise dissipation and the evaporator is ducted nearby the cellar. This keeps the wine cellar quiet and vibration-free.

Dimensions:

Dual Evaporators: 20.5”W x 15.5”H x 16”D
Condenser: 18.9”W x 16.2”H x 24”D

Insulated Line Set:

3/4”Suction (7/8" if greater than 50ft)

3/8”Liquid

Drainline: 1/2” ID clear plastic tubing

Cellar Size: Approx. 3000 Cu.Ft

The Split System does NOT come with its own line set.

Described in the simplest terms, a split system is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar, and the condensing unit is generally located outside, or in an attic or utility room.

The Ducted Twin Platinum Split allows you to decide where the evaporator unit and the condensing unit will be located. The condensing unit can be located up to 100 ft. away from the evaporator unit. The evaporator unit will be mounted in the cellar or it can also be located nearby with ducting.

24Volt

For the Split System series, a 24V option is also available which allows you to tie into your home electronic thermostat or home automation system, please inquire.

 Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.  Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

• Virtually silent operation
• Liquid bottle probe
• Humidity control
• Alarm options
• 55°F temperature delta
• 220V Condenser can be placed outdoors

Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website.  You will have an opportunity to not complete your order at that time.

For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.

Warranty Check List – R134a Products
Warranty Check List – R404a Products

Warranty Check List
Warranty

Please make sure you complete the warranty check list to ensure your warranty is active.

A limited 2-year product/5-year compressor warranty is offered with all split system cooling units at the date of purchase.
