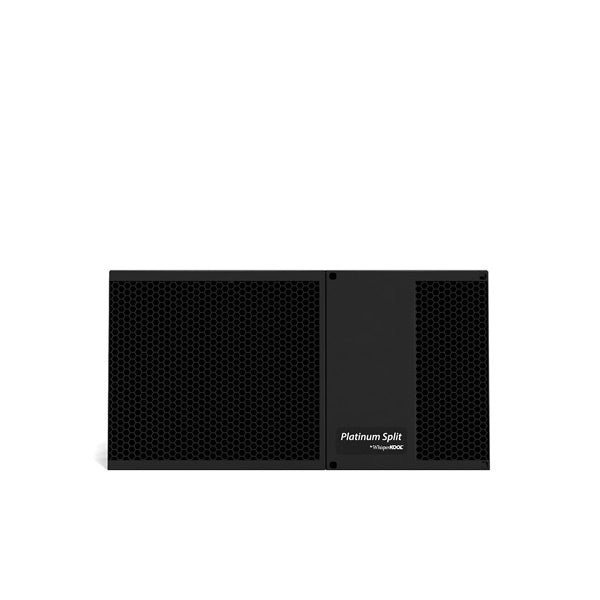

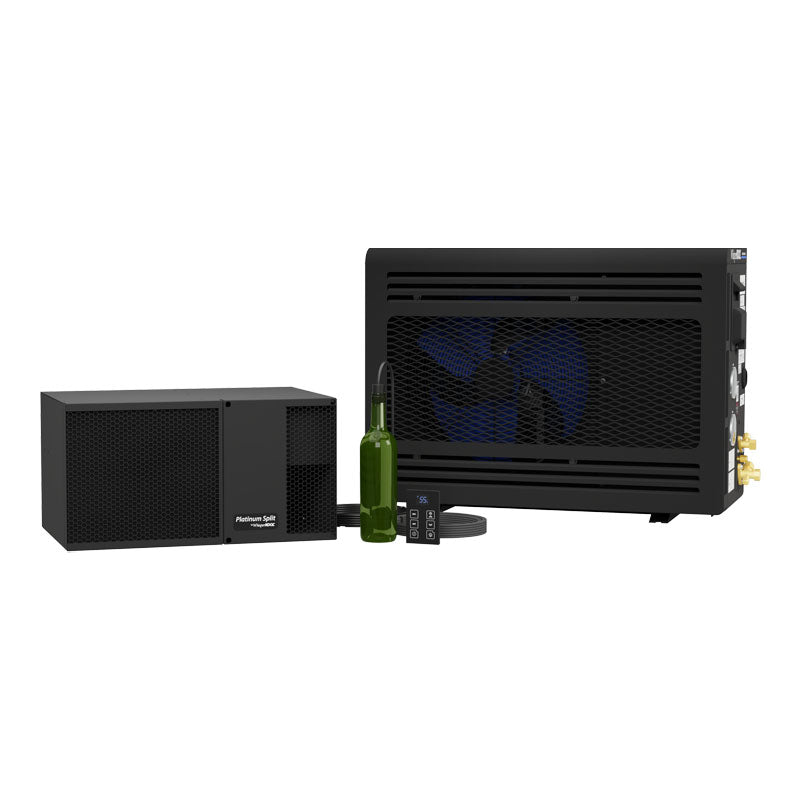

Mini Platinum Split – Ductless Wine Cellar Cooling System
Description
The Ductless Mini Platinum Split delivers powerful cooling with a whisper-quiet, unobtrusive profile. Designed for flexibility, the evaporator mounts inside the wine cellar while the condensing unit can be installed up to 100 feet away—allowing for tailored placement to suit your cellar’s distinct layout. Built for longevity and dependable performance, this system is a trusted choice among contractors for both residential and commercial applications.
Designed & Assembled in California
Additional Information
Condenser Options
OMEGA 110 H.E. Condenser
The OMEGA 110 H.E. is the high efficiency condenser option for installations requiring 110V power. Remote placement helps remove compressor heat and operating noise from the cellar while supporting dependable split system cooling.

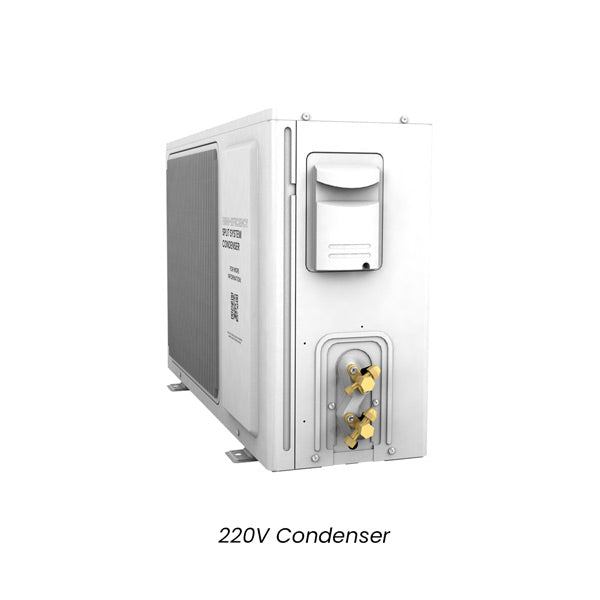

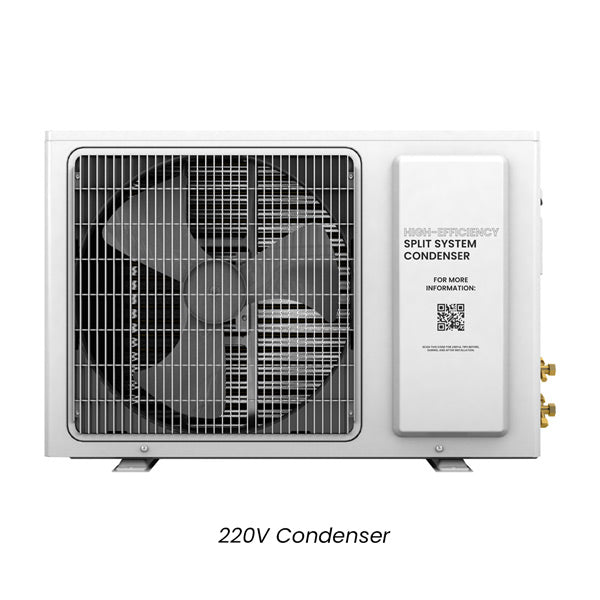

Advanced H.E. 220V Condenser
The new Advanced H.E. 220V condenser is engineered for improved efficiency, protection, quiet operation, and serviceability. Its wide ambient operating range supports dependable performance in temperatures from minus 20°F to 120°F, making it suitable for demanding indoor and outdoor installation environments.
A high efficiency rotary compressor works with a liquid line injector, cycling switch, compressor heater strap, and suction line accumulator to protect the system during high and low ambient conditions. A hydrophilic coated condenser coil provides added corrosion resistance in humid or challenging environments.
The compressor blanket and vibration isolation mounts help reduce operating noise and vibration. Built in high side and low side pressure gauges include pressure to temperature conversion scales, allowing technicians to quickly review refrigerant pressure and saturation temperature during charging, diagnostics, and system verification.
Flare fittings simplify installation and servicing, while the updated housing provides quick remove top access and a dedicated electrical compartment for more efficient maintenance and troubleshooting.
Advanced H.E. 220V Features
- High efficiency rotary compressor
- Ambient operating range from minus 20°F to 120°F
- Liquid line injector for high ambient protection
- Hydrophilic coil coating for corrosion resistance
- Cycling switch for automatic pressure regulation
- Suction line accumulator for compressor protection
- Compressor heater strap for cold ambient protection
- Compressor blanket for quieter operation
- Vibration isolation mounts
- Flare fittings for simplified installation and servicing
- Quick remove top access
- Dedicated electrical compartment
- High side and low side pressure gauges
- Integrated pressure to temperature conversion scales
Key System Features

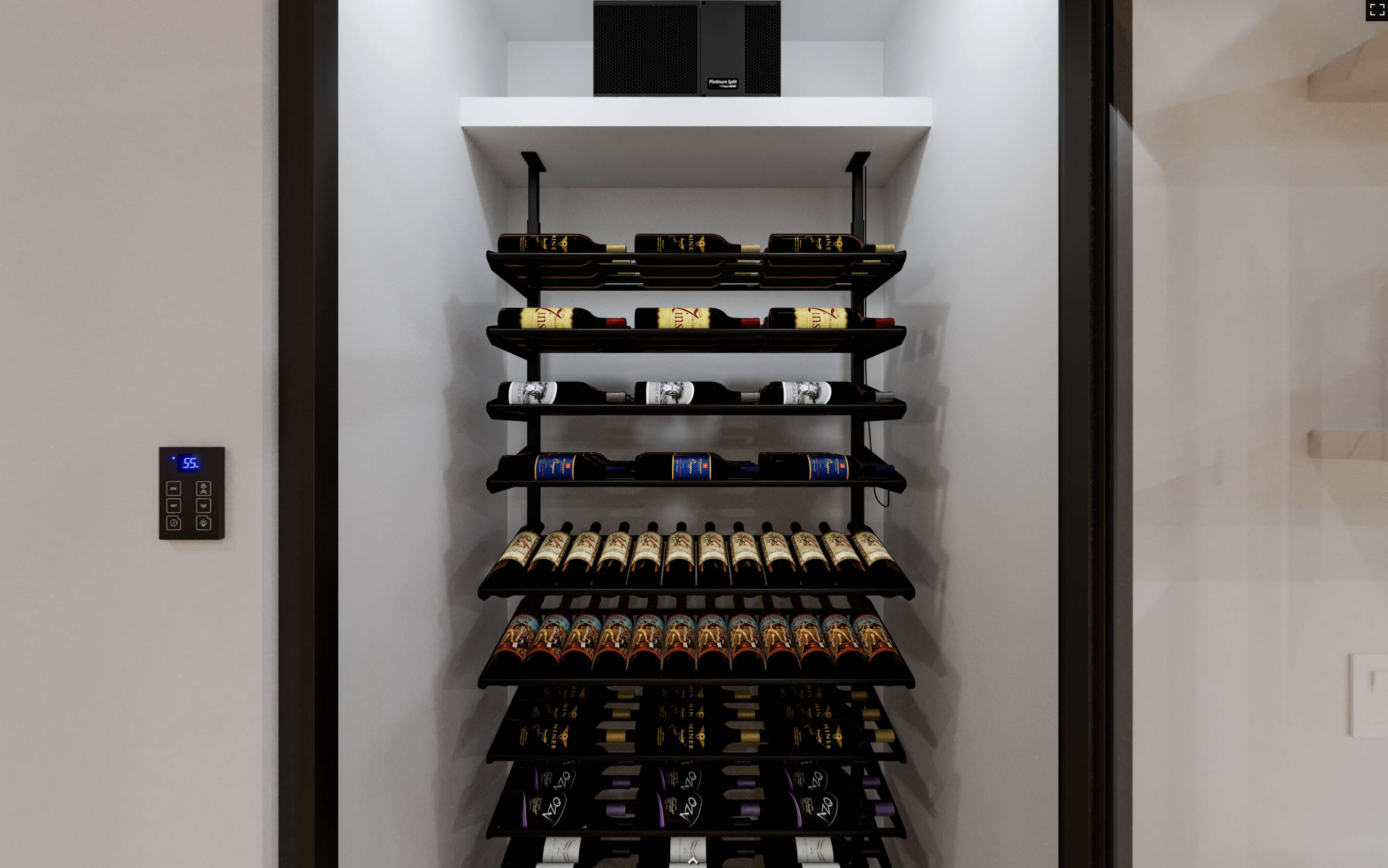

- Ceiling mounted design preserves racking space
- Virtually silent evaporator operation

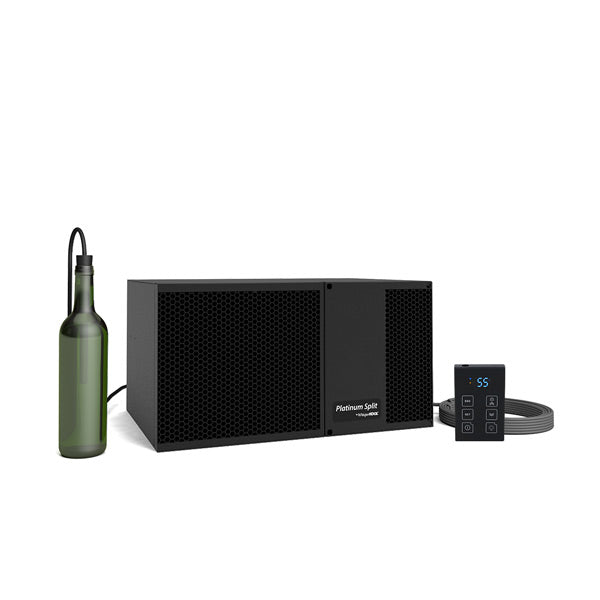

- Liquid bottle probe for accurate temperature monitoring
- Humidity management
- Temperature and system alarm options
- Up to a 55°F temperature differential
- Remote condenser placement

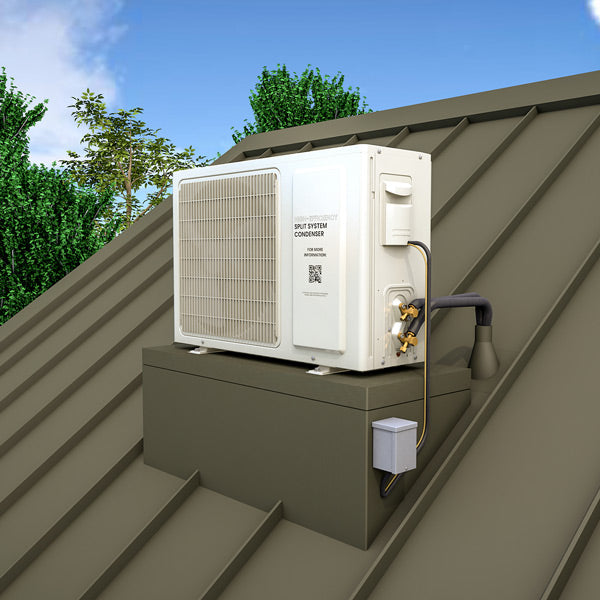

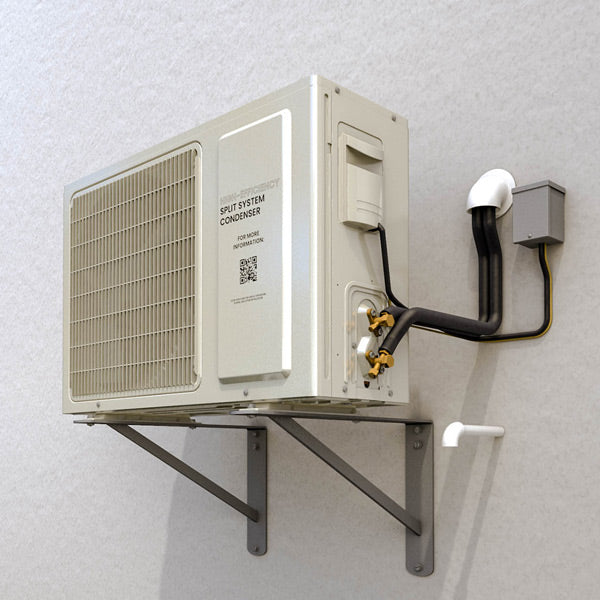

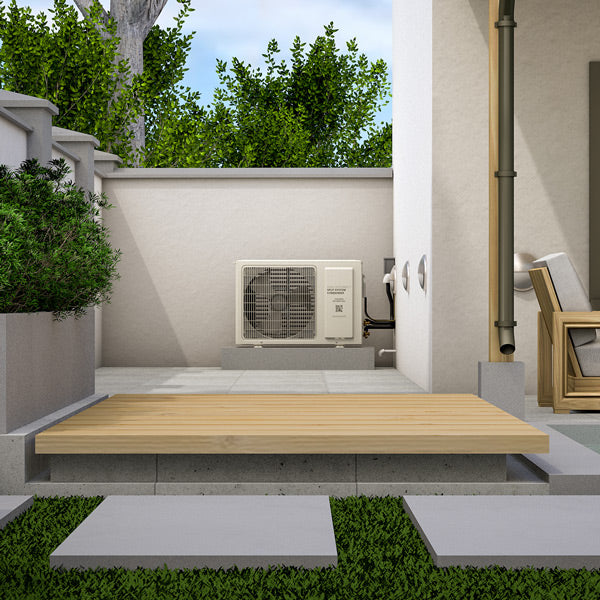

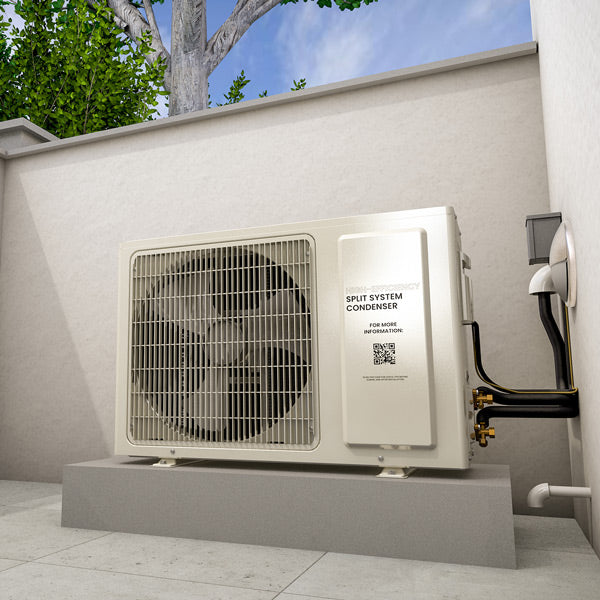

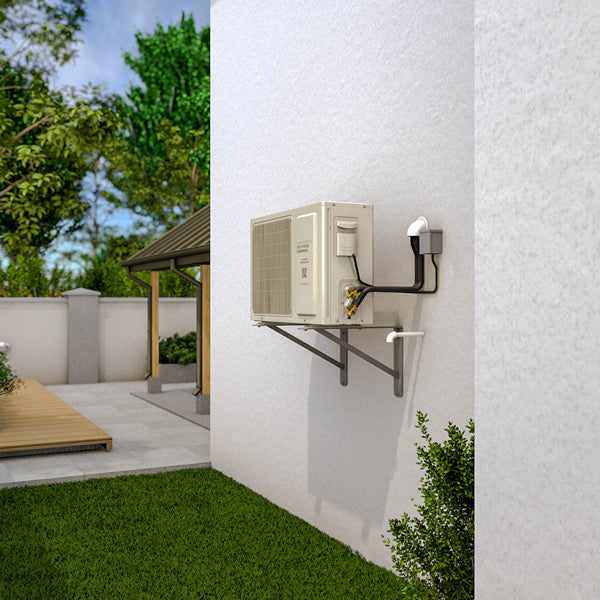

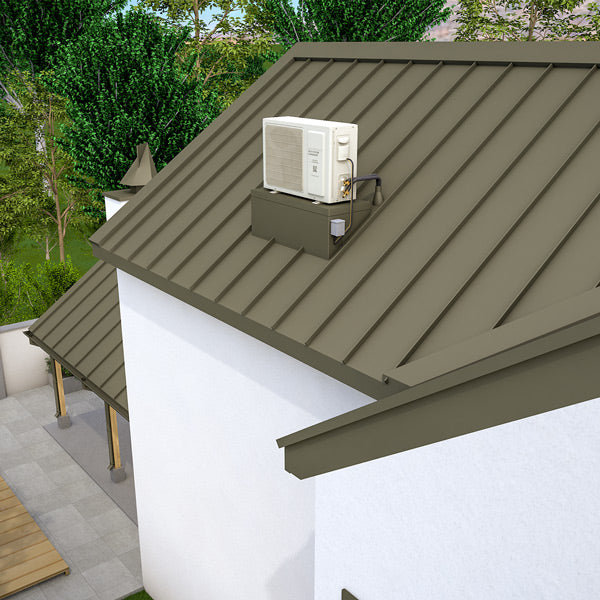

- Advanced H.E. 220V condenser suitable for outdoor placement
- Optional 24V configuration for compatible thermostats and home automation systems
Platinum Mini split system are built to handle smaller-capacity cellars. In a small environment, you need all the space you can get for racking.
Dimensions:

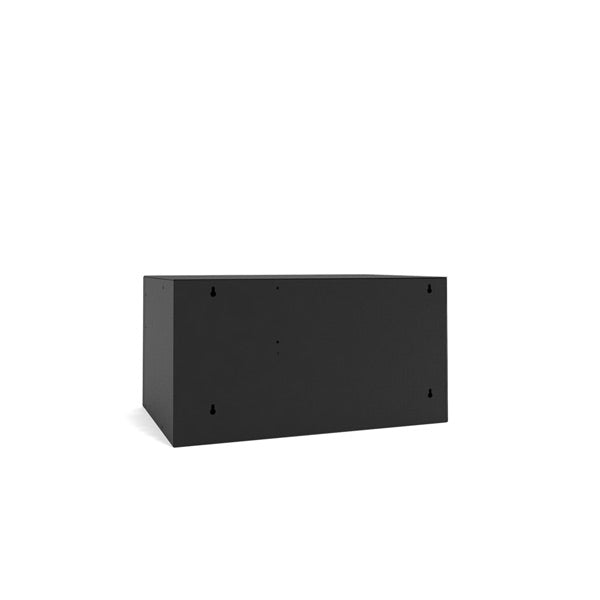

Unit size: 13”L x 20”W x 10.5”H
Condenser: 31.18"L x 10.75"W x 21.18"H
Lineset:
Suction: 3/8" OD (1/2" greater than 50ft)
Liquid: 1/4" OD
Drainline:
1/4” ID clear plastic tubing
The Platinum Split allows you to decide where the evaporator unit and the condensing unit will be located. The condensing unit can be located up to 100 ft. away from the evaporator unit. The evaporator unit will be mounted in the cellar or it can also be located nearby with ducting.
If you don’t mind seeing the grille of your cooling unit in your cellar, a wall-mounted split system is what you need. If you prefer your unit to be out of sight, you should get a fully ducted split system.
24Volt
For the Split System series, a 24V option is also available which allows you to tie into your home electronic thermostat or home automation system, please inquire.
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
- Virtually silent operation
- Liquid bottle probe
- Humidity control
- Alarm options
- 55°F temperature delta
- 220V Condenser can be placed outdoors
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
Warranty Check List – R134a Products
Warranty Check List
Split System Product Warranty
A limited 2-year product warranty with up to an additional (1) year grace period for installation is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
