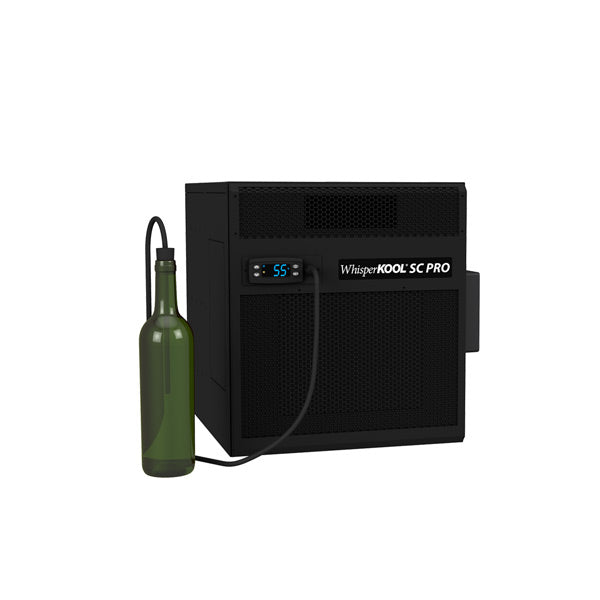

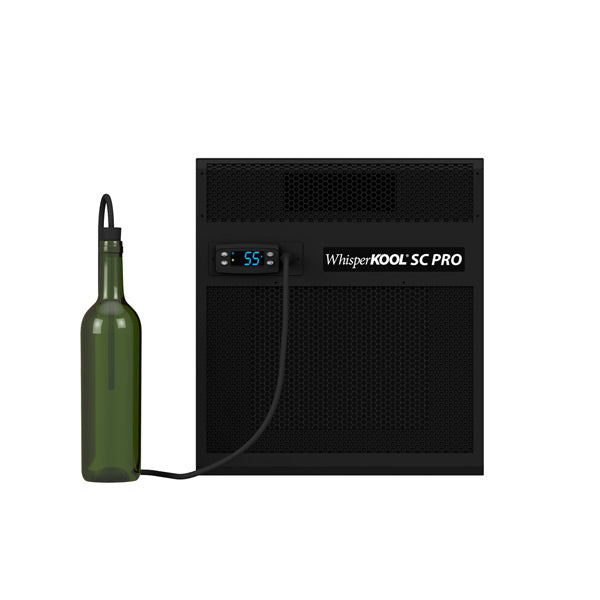

SC PRO 4000 – Through-the-Wall Wine Cellar Cooling System
Description
The SC PRO 4000 is a self-contained, through-the-wall wine cellar cooling unit built for small to mid-sized cellars. Combining efficiency, affordability, and ease of use, it offers reliable performance without the need for professional installation. Part of the proven SC Series, this unit is a top choice for DIY cellar projects thanks to its straightforward setup—no HVAC-R technician required.
Upgraded with enhanced components, the SC PRO 4000 delivers strong airflow, quiet operation, and energy-efficient cooling. Its integrated condensate management system evaporates up to 3 oz. of water per hour. To maintain a consistent 55°F environment, the condenser intake temperature should stay below 85°F, making this unit best suited for interior installations.
Additional Information
What separates the original SC Series from the SC PRO Series? The SC PRO comes complete with a new, blower fan system that optimizes performance while operating at a significantly lower noise level. It also reintroduces a condensate management system, which effectively evaporates up to 3oz. of water an hour. This management system renders the drain line as an additional safeguard rather than a definite need.
Designed & Assembled in California

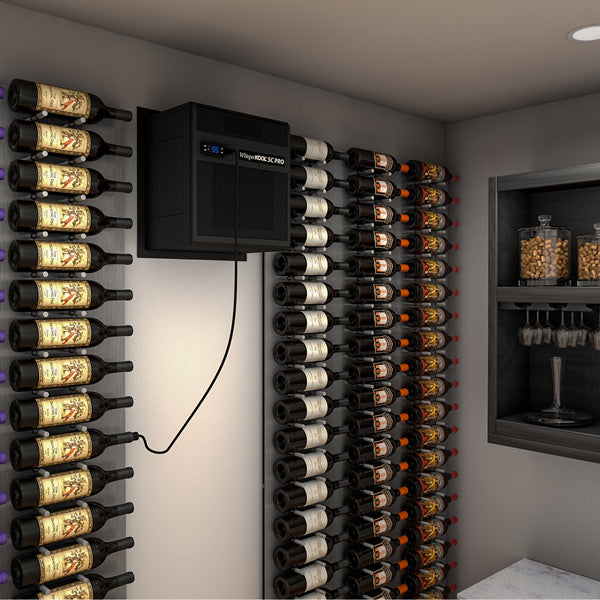

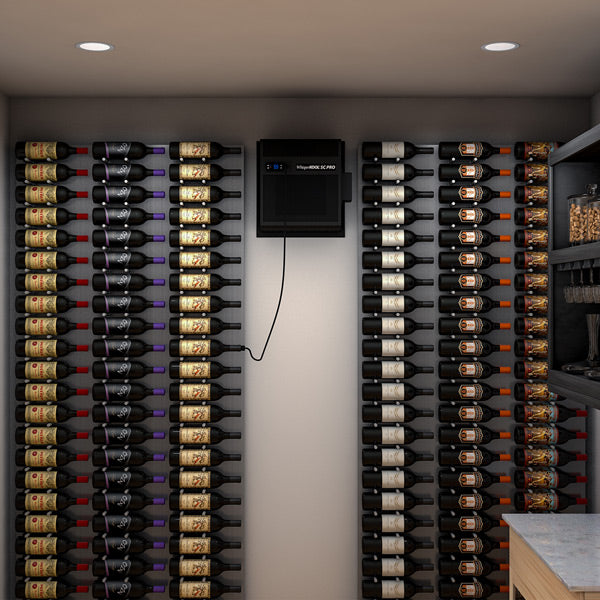

Self Contained systems are designed to mount between the studs of an existing wall. One end of the system blows cool air in to the cellar, and the other end exhausts the heat from the cellar into an area adjacent to the cellar.
Dimensions: 17.5"L x 14.25"W x 15.75"H
Weight (lbs): 65

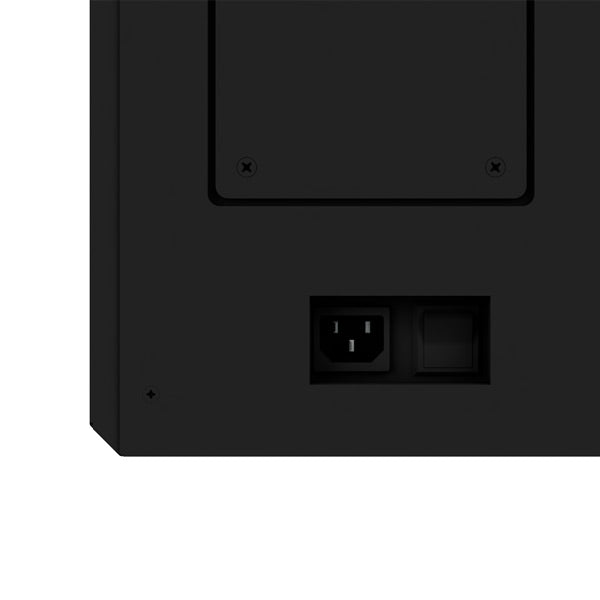

Voltage: 115V (15amp)
Cellar Size: Approx. 1000 Cu.ft
Drain Line: 1/2" ID
Rear Ducting Example for the SC Pro Wine Cooling units.
8” in-line fan compatible with SC PRO 2000/3000/4000 models
10” in-line fan with transitions to 8” compatible with SC PRO 8000 model
TECHNICAL SPECS
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contacted by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
A limited 2-year product & up to an additional (6) month grace period for install/5-year compressor warranty is offered with all self-contained cooling units at the date of purchase.
